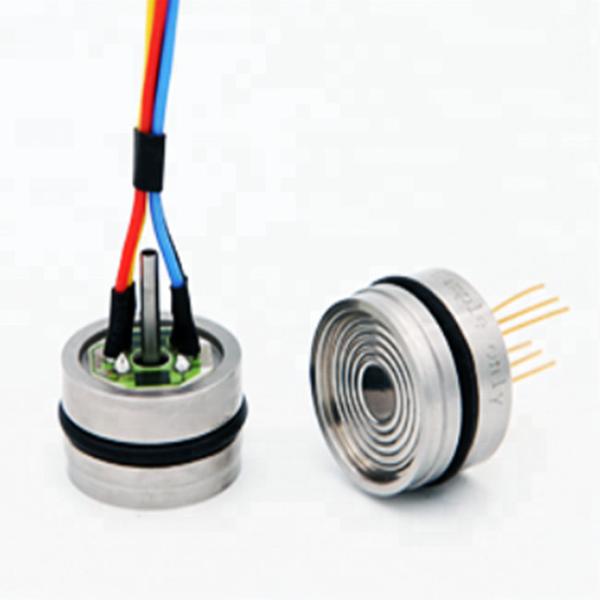

Oil Filled Waterproof Pressure Transducer
Introduction
waterproof pressure transducer is an isolated oil - filled pressure sensor core with high performance, low cost and small volume. It uses MEMS Silicon chip. Manufacturing of each sensor is a process with strict aging, screening and testing to ensure the excellent quality and high reliability.
This product has high anti-overload capacity and wide temperature range, it is widely used in automobiles, loading machinery, pumps, air conditioning and other occasions where have high requirements on small size and cost-effective.
Feature
Ø Measuring range: -100kPa…0kPa~10kPa…100MPa
Ø Wide temperature compensation: -10℃~+80℃
Ø Imported chip, Laser trimming
Ø SS 316L φ19mm*11.5mm

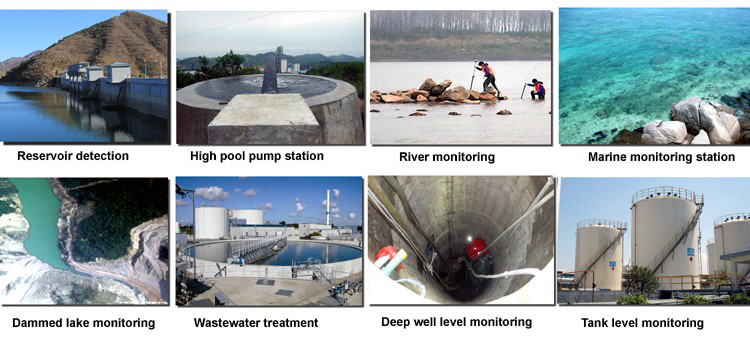

Application
Ø Pressure measurement of automobile engine oil
Ø Engineering machinery, water pumps, equipment
Ø Industrial process control
Ø Urban water supply system

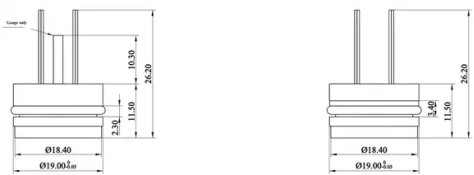

Outline Construction:(Unit: mm)
Specification
| Construction Condition |
| Diaphragm material | SS 316L |
| Housing material | SS 316L |
| Pin Wire | Kovar/100mm silicone rubber wire |
| Back pressure tube | SS 316L (gauge and negative pressure only) |
| Seal ring | Nitrile rubber |
| Electrical Condition |
| Power supply | ≤2.0mA DC |
| Impedance input | 3kΩ~6kΩ |
| Impedance output | 3kΩ~6kΩ |
| Response | (10%~90%):<1ms |
| Insulation resistance | 100MΩ,100V DC |
| Overpressure | 2 times FS |
| Environmental Condition |
| Media applicability | Fluid which has no corrosion on stainless steel and nitrile rubber |
| Shock | No change at 10gRMS,(20~2000)Hz |
| Impact | 100g,11ms |
| Position | Deviate 90° from any direction, zero change≤±0.05%FS |
| Basic Condition |
| Environment temperature | (25±1)℃ |
| Humidity | (50%±10%)RH |
| Atmospheric pressure | (86~106) kPa |
| Power supply | (1.5±0.0015)mA DC |
Parameter
| Item | Min. | Typ. | Max. | Units |
| Linearity | | ±0.1 | ±0.2 | %FS,BFSL |
| Repeatability | | ±0.05 | ±0.075 | %FS |
| Hysteresis | | ±0.05 | ±0.075 | %FS |
| Zero output | | | ±2.0 | mV DC |
| FS output | 45 | 130 | | mV DC |
| Compensated temp. range | -10~80 | ℃ |
| Working temp. range | -40~125 | ℃ |
| Storage temp. range | -55~150 | ℃ |
| Zero temp. error | | ±0.75 | ±0.1 | %FS, @25℃ |
| Full temp. error | | ±0.75 | ±0.1 | %FS, @25℃ |
| Long term stability error | | ±0.2 | | %FS/year |
| Note:1. The above performance indicators are tested under the benchmark conditions |
| 2. The temperature range for temperature drift test is the compensation temperature range |
